Geodesic Dome

2026

I've always been fascinated by Geodesic domes since studying them at University and learning about Buckminster Fuller - a very inspiring individual. This began as an exercise in teaching myself how to model a geodesic dome before adapting it into a light fixture. It consists of 160 LEDs embedded in a dual layer dome with 1mm transparent diffusers controlled by WLED

Lit

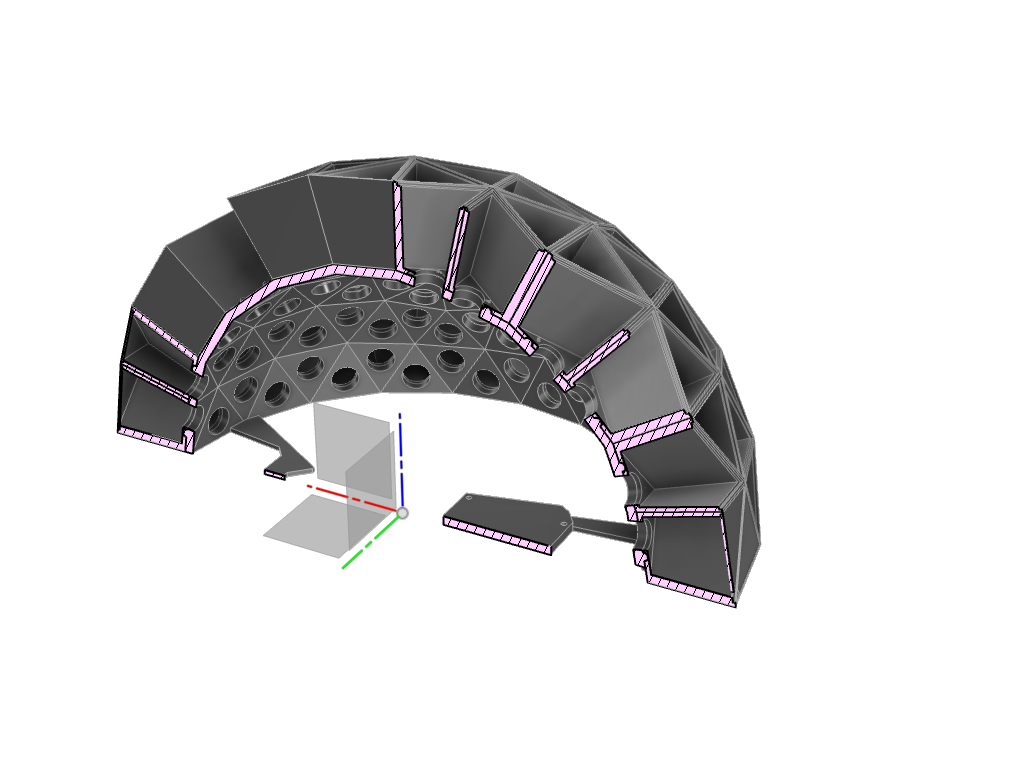

3D Model Section

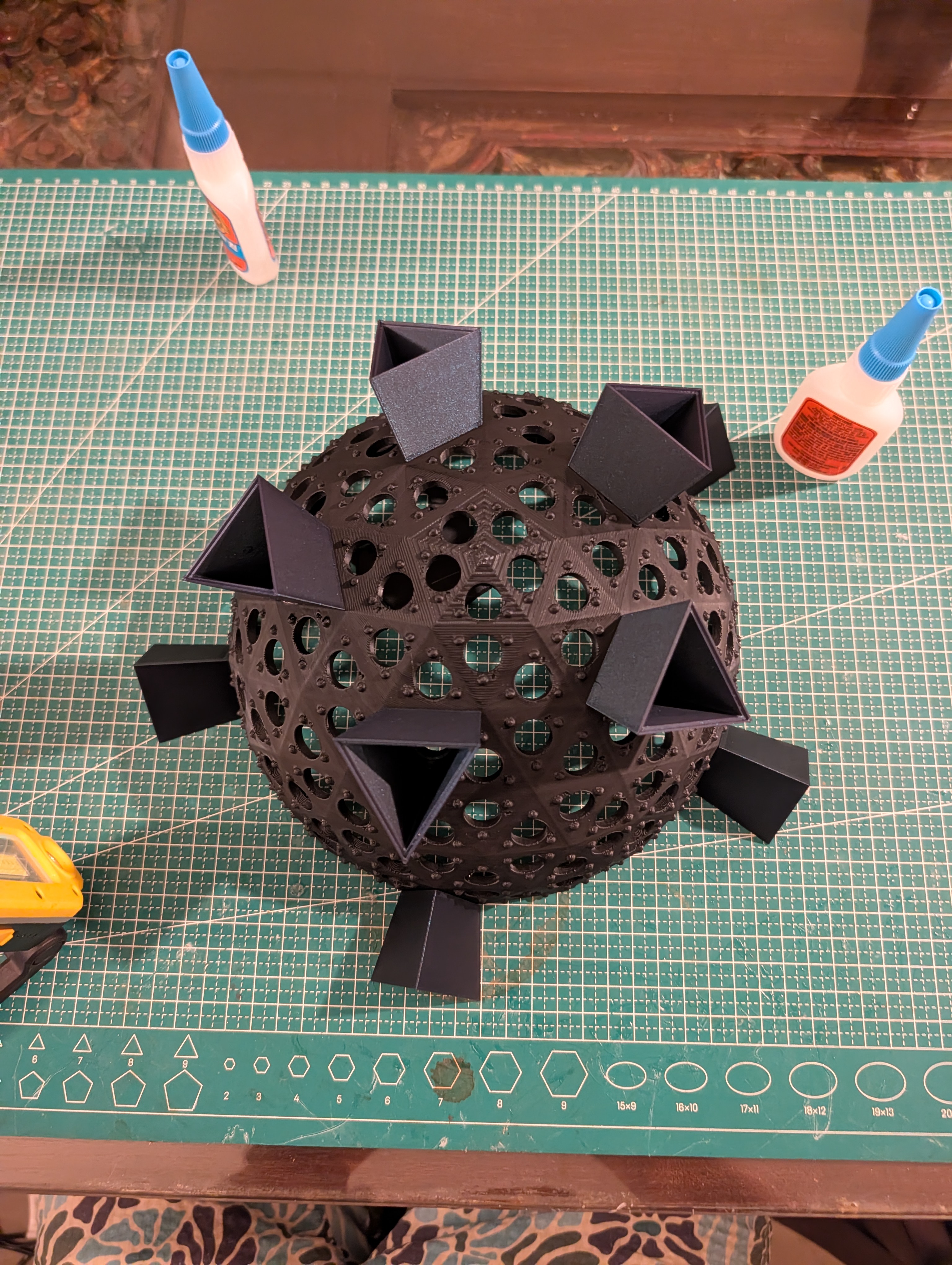

Assemby

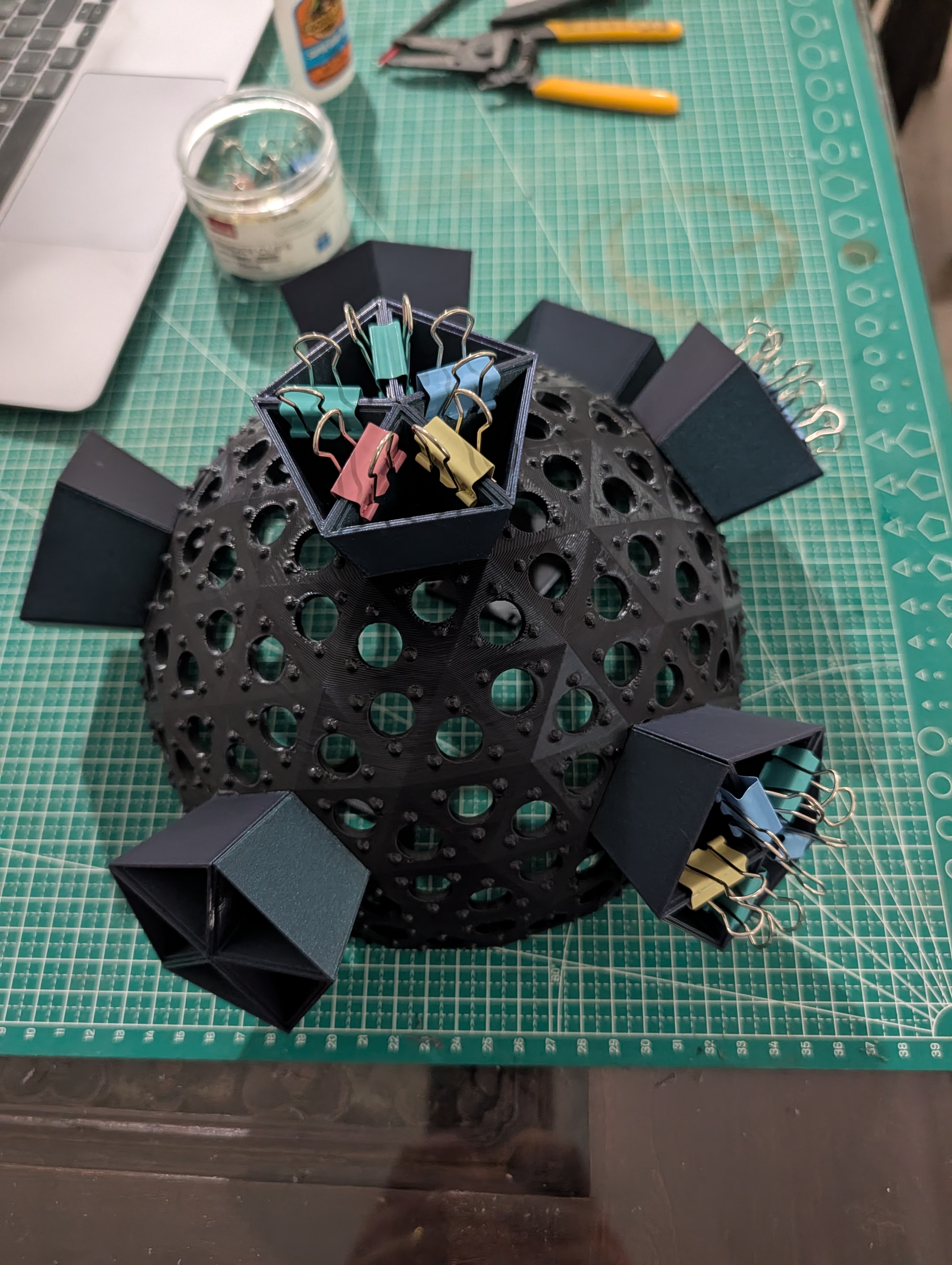

Assembly 2

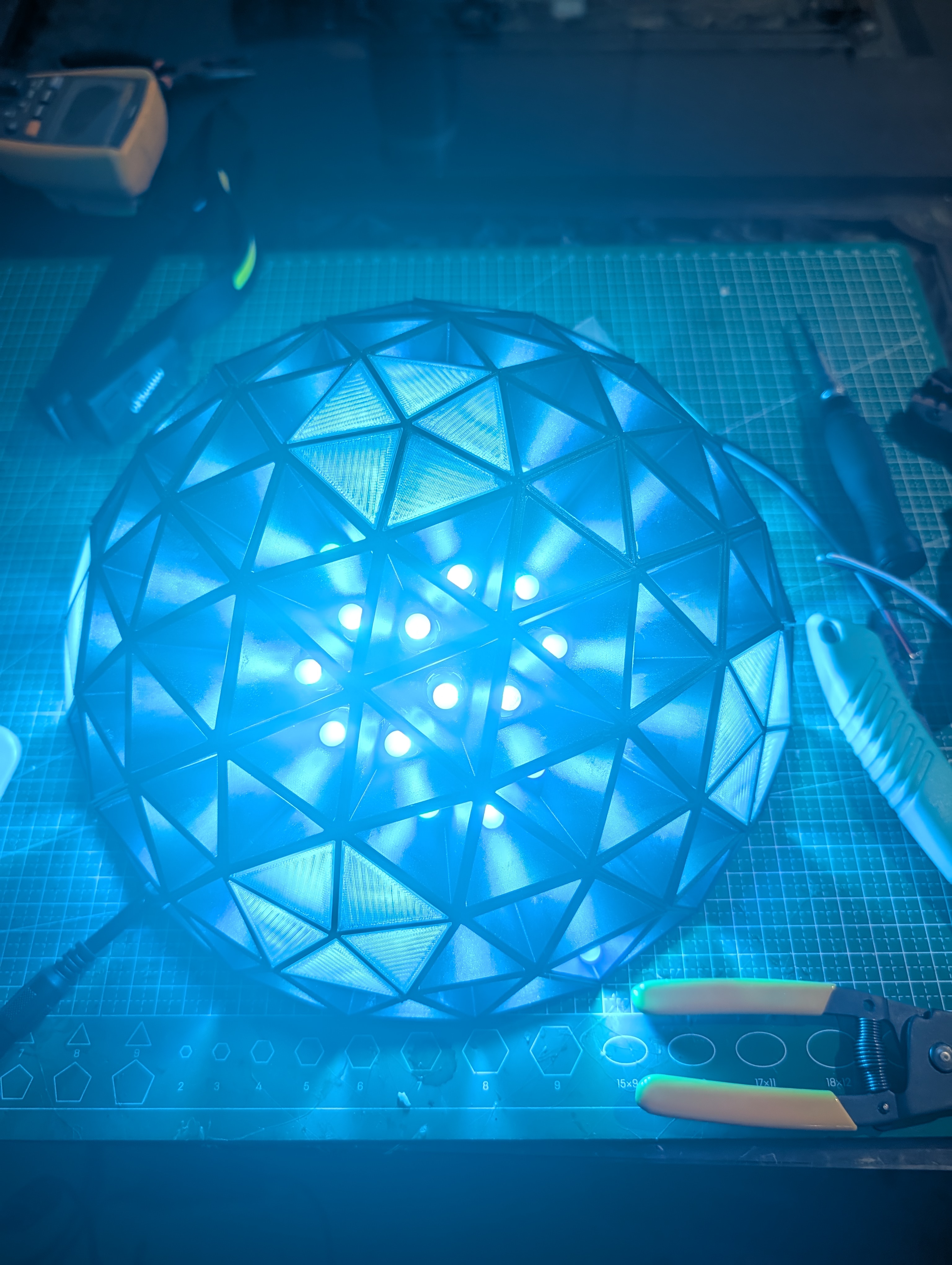

Bench Test

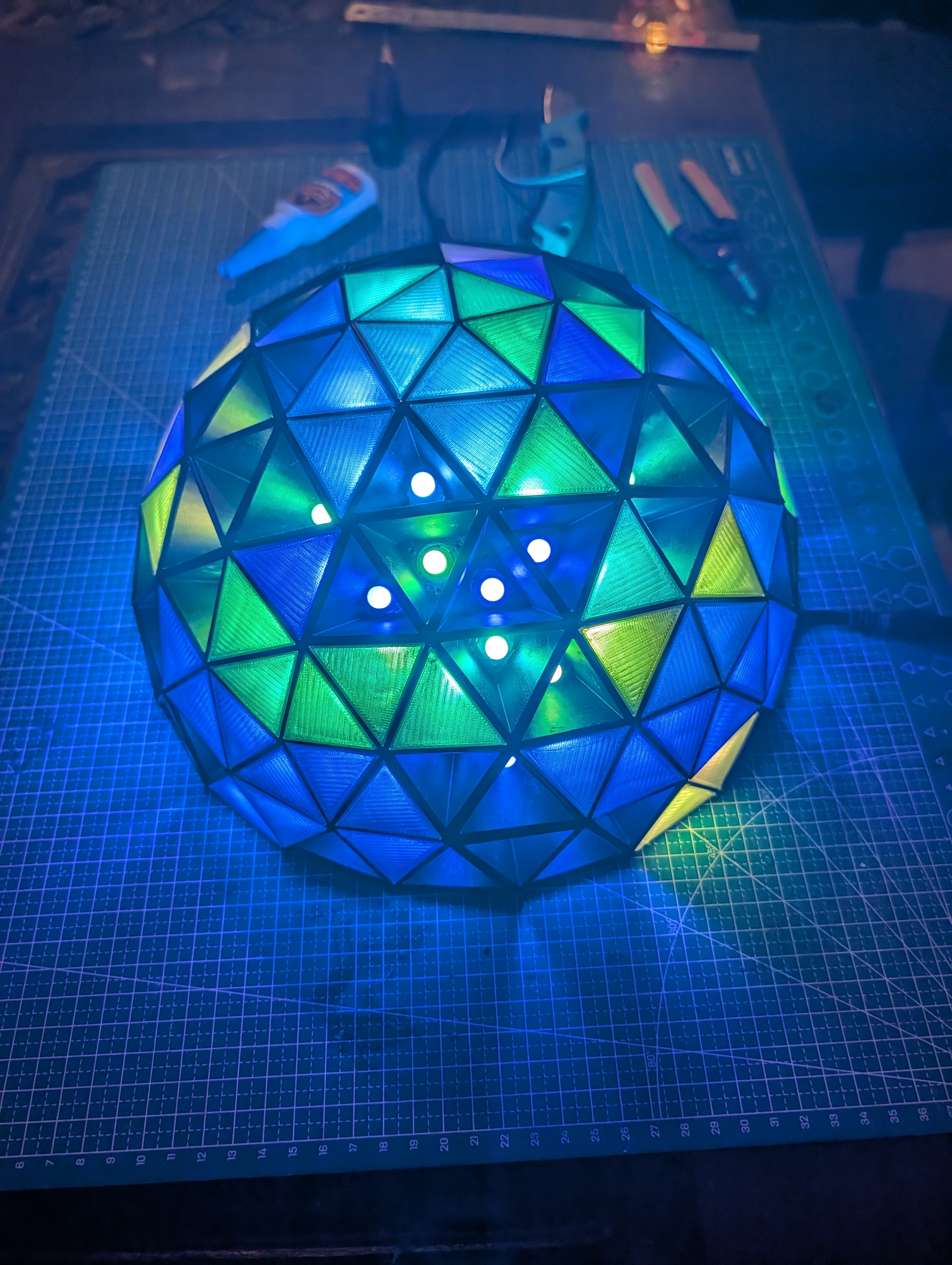

Bench Test 2
Dimensions
Ø 370 mm, 4V frequency dome
Controller
Quin LED Dig-Uni running WLED
Power
12 V DC
Illumination
160 WS2815 Addressable LEDs
Materials
Black PLA Inner & Outder Dome, Transparent PLA Diffusers
